MicroPorous Xtraction (MPX) Tips
A revolutionary technology that incorporates a variety of microporous media options for high efficiency sample preparation workflows.

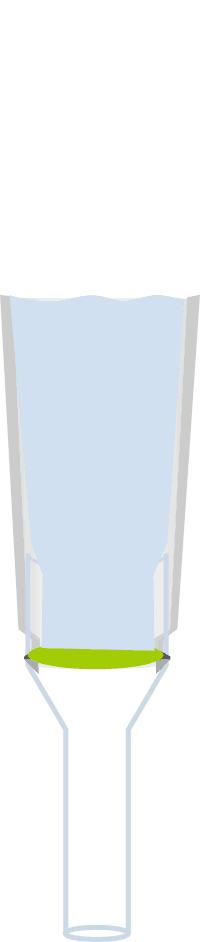

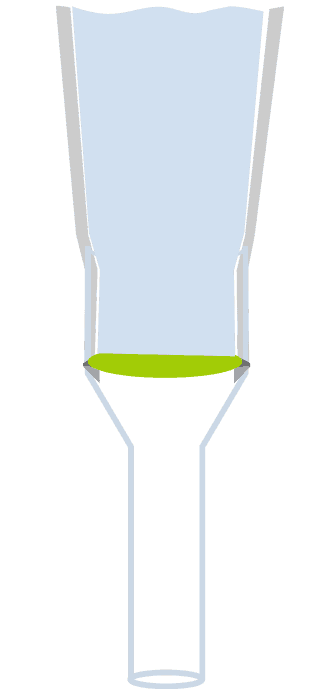

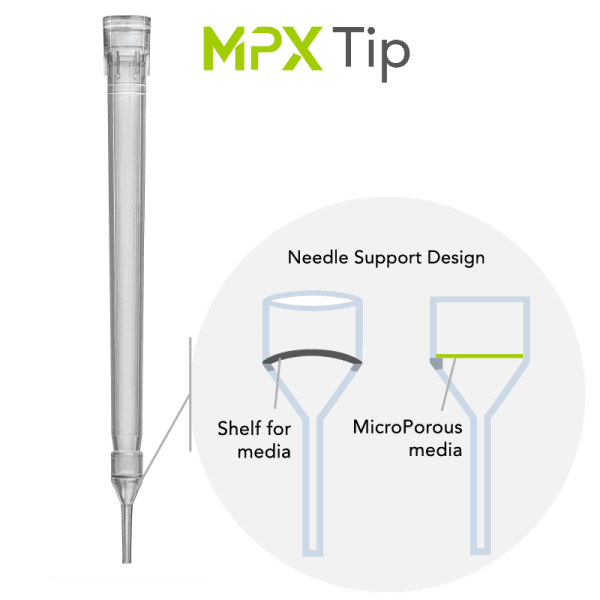

MPX Tips incorporate a component, referred to as a needle support, that houses high-capacity microporous media. This allows for concentration factors in extraction methods that can replace spin columns or magnetic bead workflows. The MPX method facilitates extraction of high-quality genomic DNA from complex biological samples using an automated bind-wash-elute protocol.
• Mixing via aspirate and dispense steps allows for optimization of binding cycles
• High yields greater than 100 ng/µL
• High purity DNA with a 260/280 ratio of 1.76
• PCR Inhibitor free
Technology Advantages
MPX Tips allow for easy aspirate and dispense steps.
Process up to 96 samples from lysate to purified DNA in less than 20 minutes.

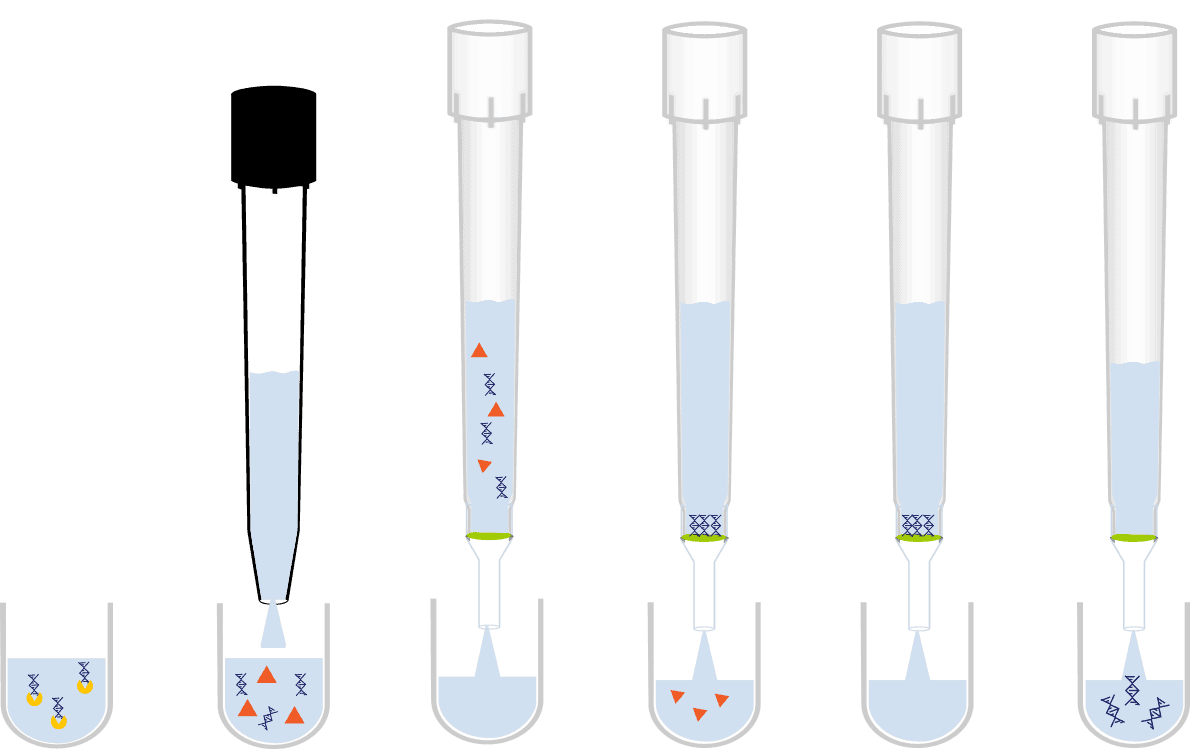

Bind-Wash-Elute Workflow
Add IPA
Sample Incubation
Bind DNA
Wash 1
Wash 2
Elute
Data and Performance

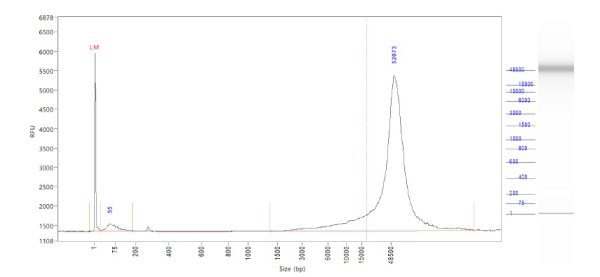

An Agilent 5200 Fragment Analyzer was used to determine the size distribution of the isolated genomic DNA. Over 80% of the isolated DNA was above 20 kb in size.

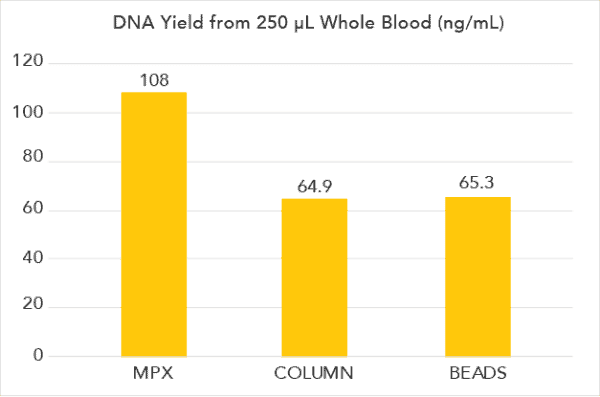

Direct comparison of average DNA yields from 250 μL of blood with DPX MPX isolation versus the leading bead-based and column based isolation competitor companies.
Ordering

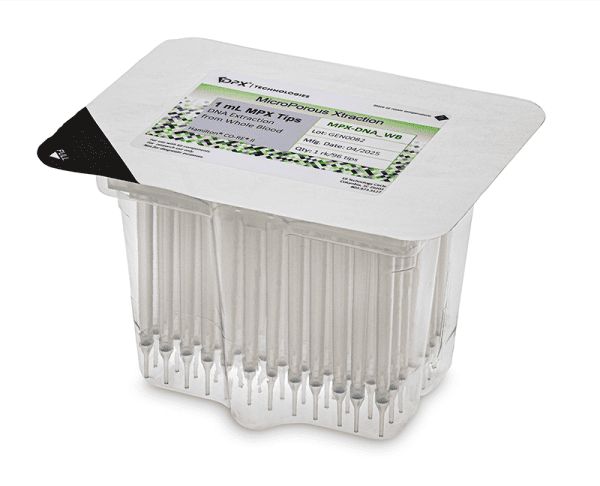

MPX Tips and accompanying buffers are sold in a matrix specific kit.
Automation Compatibility: Hamilton Robotics
| Kit | Kit Contents |
|---|---|
| DNA Extraction from Whole Blood | 1 mL MPX Tips, Proteinase K, Lysis Buffer, Wash 1 Buffer, Wash 2 Buffer, Elution Buffer |
| DNA Extraction from Saliva | Coming Soon! |
| DNA Extraction from Cells | Coming Soon! |
If you don’t see a kit for your matrix, please contact us for custom product and method development.
